In the diffractogram given in Figure 2 for an unknown material, the following procedure is adhered:

Step 1: Determination of diffraction peak positions
The 2θ values corresponding to the diffraction peaks are identified from the diffractogram. Each peak represents constructive interference from a specific set of crystal planes.

Step 2: Calculation of θ, sin θ, and sin²θ
The diffraction angle θ is obtained by dividing the measured 2θ value by two. The corresponding sin θ, and sin²θ values are then calculated. For cubic crystals, sin²θ is directly proportional to (h²+k²+l²), making it useful for peak indexing.

Step 3: Determination of normalized ratios
Each sin²θ value is divided by the smallest sin²θ value. This normalization removes the effect of lattice parameter and facilitates comparison with theoretical reflection sequences.

Step 4: Identification of integral sequence
The normalized ratios are multiplied by a suitable integer to obtain a sequence of whole numbers. These integers correspond to the allowed values of (h²+k2+l²), for a particular crystal structure.

Step 5: Peak indexing and crystal structure identification
The obtained integer sequence is compared with the theoretical reflection conditions of SC, BCC, FCC, and diamond cubic structures. The sequence 3:4:8:11:12 matches the allowed reflections of an FCC lattice, confirming that the unknown material possesses an FCC crystal structure. The corresponding Miller indices may then be assigned as (111), (200), (220), (311), and (222), respectively.

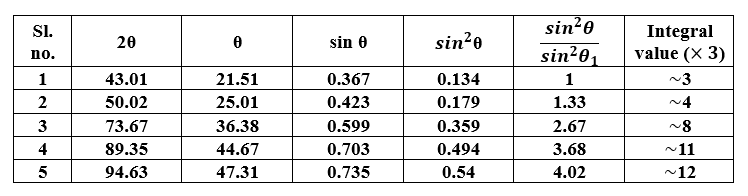

It is clear from the above table that the unknown material whose diffractogram is given is an FCC material.

In addition to the ratio method, crystal structure determination can also be carried out using the analytical method. In this approach, the interplanar spacings calculated from Bragg's law are substituted into the structure-specific d-spacing equations. The diffraction peaks are indexed by assigning suitable Miller indices, and the lattice parameters are determined by solving the corresponding equations. For cubic systems, 1/d² =((h²+k²+l² ))/a² , whereas for HCP systems, 1/d² =4/3 ((h²+k2+l²)/a² )+l²/c² . This method provides a more rigorous determination of crystal structure and lattice parameters than the ratio method.
